My Bioloid "L"

[27Loco]

Actually quite good after the upgrade to the premium. It was really at its limits with the CM5 and its heavy battery. Had shutdowns really often but now they are nearly gone.

At the moment the LiPo is connected to the hip servo but I will go a servo deeper so the hip servo only has to carry the CM510 and this should avoid any shutdowns at all

[27Loco]

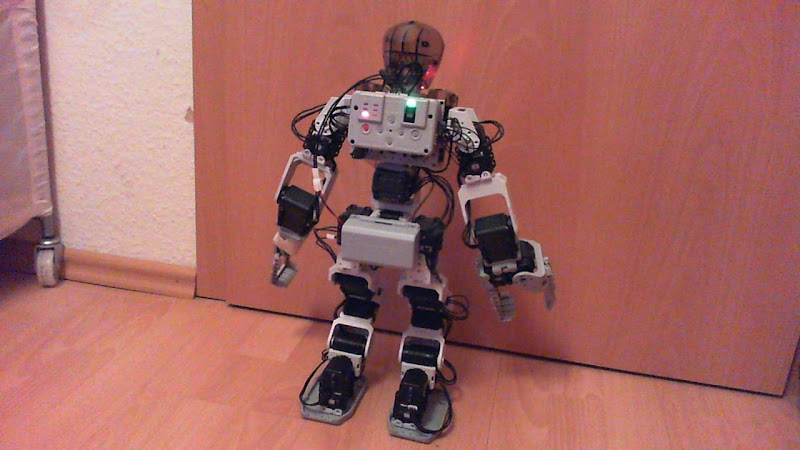

Picture of my Bioloid with the new LiPo location.

[UncleBob]

How is walking ? any vid?

[27Loco]

Still working on it. Walking is so always a long process for me and I somehow unable to figure out the whole inverse kinematics thing.

But as soon he is doing is first stable steps I will post a video.

[UncleBob]

I am beginning to understand walking. I manage to do a baby step. Maybe I should write an ebook once I got running figure out.

[UncleBob]

Incredible. This robot walks WITHOUT power based on Ted McGeer's theory.

phpBB [media]

The term and its principles were developed by Tad McGeer in the late 1980s. While at Simon Fraser University in Burnaby, British Columbia, McGeer showed that a human-like frame can walk itself down a slope without requiring muscles or motors. Unlike traditional robots, which expend energy by using motors to control every motion, McGeer's early passive-dynamic machines relied only on gravity and the natural swinging of their limbs to move forward down a slope

[UncleBob]

this is also very cool !!!

phpBB [media]

[UncleBob]

This is so cool !!!!

phpBB [media]

[UncleBob]

phpBB [media]

[siempre.aprendiendo]

That's incredible. Specially the first one!

This worth a new topic, isn`t? : )

[27Loco]

Yep this sound like a whole new topic. I have never seen this before. Thanks for sharing UncleBob. Very interesting stuff!

But imagine your robot has feet like them where the sole is round. Would make them pretty unstable as soon as they stop walking I guess.

[FabinovX]

Yeah, your new premium L looks great

[27Loco]

Changed the hands to the "normal" ones again, because without the additional AX-12+ it doesn't make sense to add gripper.

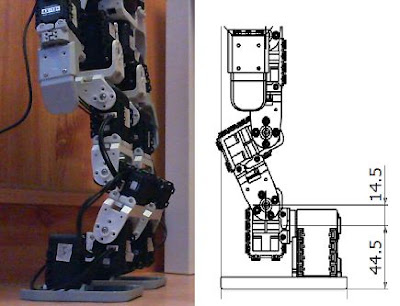

Furthermore I made minor changes to the legs and took the design of the FREEDOM JrIII and changed all Dynamixel IDs. Oh dear making all motions again



Does anybody tried the software of best technology? The motion editor has a quite a different but interesting approach.

They are taking a "HomePostion" by just capturing the position of the servos. Looks like this below:

Code: Select all

/*======================================================================*/
/* HomePosition                                                         */
/*======================================================================*/
const __attribute__((section (".rom3"))) THumanoid HomePos = {
  Servos:{
    RightLeg:{  507,    517,    738,    590,    510,},
    LeftLeg: {  504,    516,    290,    437,    511,},
    RightArm:{  491,    245,    486,},
    LeftArm: {  519,    775,    542,},
  },
};


After declaring the home position the value zero will be that servo postion captured as home position. Makes it easier to remember were the robot started with his movement.

Code: Select all

// Wake Up
const __attribute__((section (".rom4"))) THumanoidMotion WakeUp[]={
  { Servos:{
      RightLeg:{    0,     0,     0,     0,     0,},
      LeftLeg: {    0,     0,     0,     0,     0,},
      RightArm:{    0,     0,     0,},
      LeftArm: {    0,     0,     0,},
    },
    Adj:ADJ_SACC_SDECEL, Div:4000,
  },
};

Below is a simple bow motion. This is the part I am still trying to figure out. The difficulty is to recalculated the values to get the values of the servo postion.

I think the formula goes like this:

Code: Select all

CurrentPosition * Previous Position / 1000 + HomePosition

Lets try that out with the second servo of the right and left leg:
right: 517 * 718 / 1000 + 517 = 888
left: 515 * 724 / 100 + 515 = 890

hm the left value is somehow not correct. should be below 512 of course. No idea how they figure that out. Maybe they are just adding a small line somewhere that calculates the following for the left side: (512-890)+512

Code: Select all

// Bow
const __attribute__((section (".rom4"))) THumanoidMotion Bow[] ={
  { Servos:{
      RightLeg:{    0,   718,   -11,  -249,    -2,},
      LeftLeg: {   -8,   724,     2,  -263,     0,},
      RightArm:{  240,    -5,    -5,},
      LeftArm: {  275,    -2,     8,},
    },
    Adj:ADJ_SACC_SDECEL, Div:1000
  },
  { Servos:{
      RightLeg:{    0,     0,     0,     0,     0,},
      LeftLeg: {    0,     0,     0,     0,     0,},
      RightArm:{    0,     0,     0,},
      LeftArm: {    0,     0,     0,},
    },
    Adj:ADJ_SACC_SDECEL, Div:1000
  },
};


You can download their complete library from their website including inverse kinematics walking, motions for the robo one competition.

Does anybody can imagine a different approach on how they are using their motion data?

You can find more info on their website, including a lot of code.
http://www.besttechnology.co.jp/modules/knowledge/?%E3%83%A2%E3%83%BC%E3%82%B7%E3%83%A7%E3%83%B3%E3%81%AE%E4%BD%9C%E6%88%90[/code]

Best wishes,


Loco

[UncleBob]

It is a different approach indeed. But why do it this way. Isn't roboplus motion method can also achieve the same?

[27Loco]

I would prefer a combination of both. Setting a Homeposition and then just setting the values to -10 or 200. Would be much easier for synchronizing the left and right site.

I believe making precise motions could be archived faster that way.
